Alternator

Overview

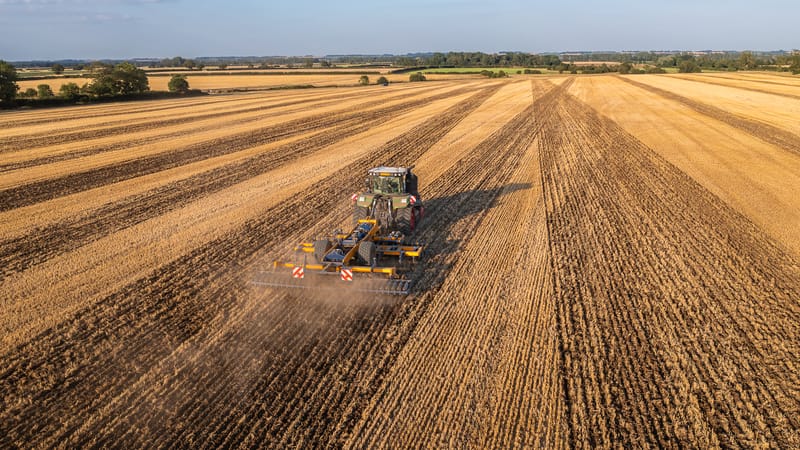

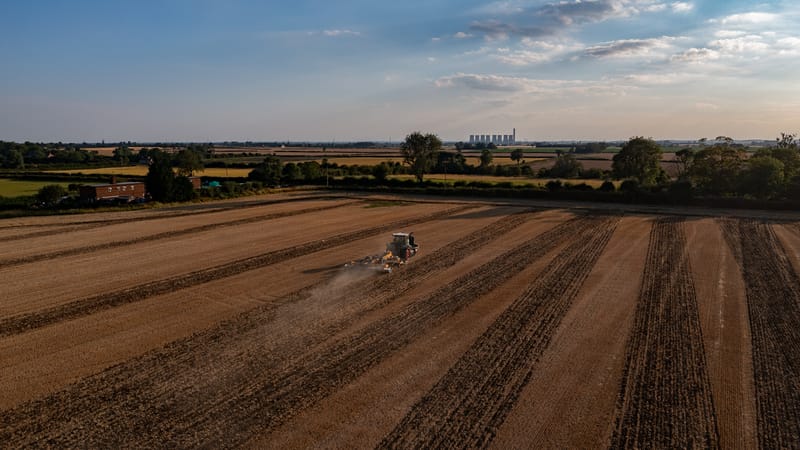

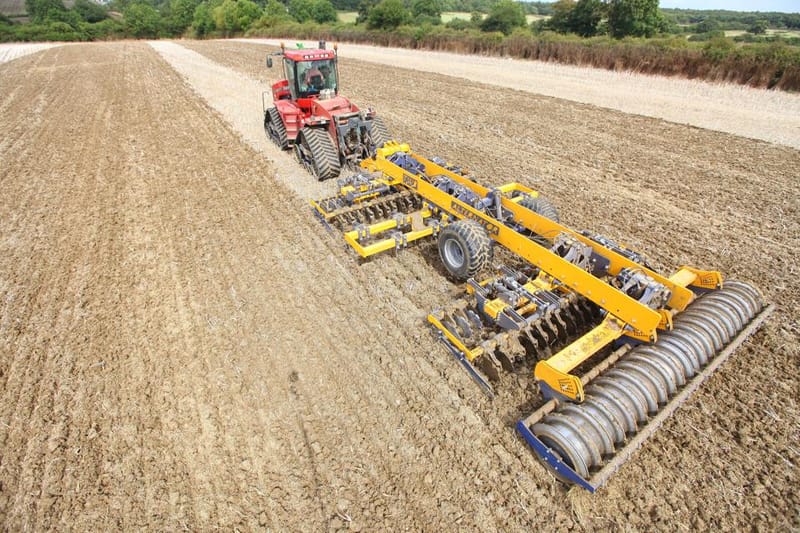

The TWB Alternator represents an evolution of the reliable and widely trusted TWB Terminator. It boasts a more detailed and versatile specification, enhanced by various bespoke features. These additions allow users to ‘alternate’ the machine's configurations to suit different seasons and varying needs. Key Features of the TWB Alternator: Seasonal Adaptability: The machine can be customized for optimal performance in different weather conditions. Bespoke Configurations: Users can select specific features to tailor the machine to their unique requirements. Enhanced Versatility: The advanced design supports a broader range of functions compared to its predecessor. Increased Reliability: Building on the trustworthy foundation of the TWB Terminator, the Alternator ensures consistent performance. In summary, the TWB Alternator offers a significant upgrade in functionality and customization, making it an ideal choice for those needing a machine that can adapt to various seasonal demands. Offered in a 4-7m option

Key Features

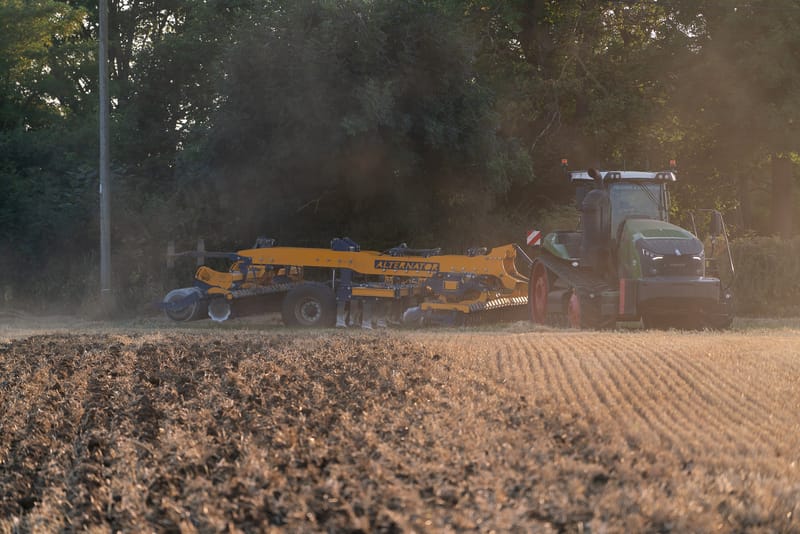

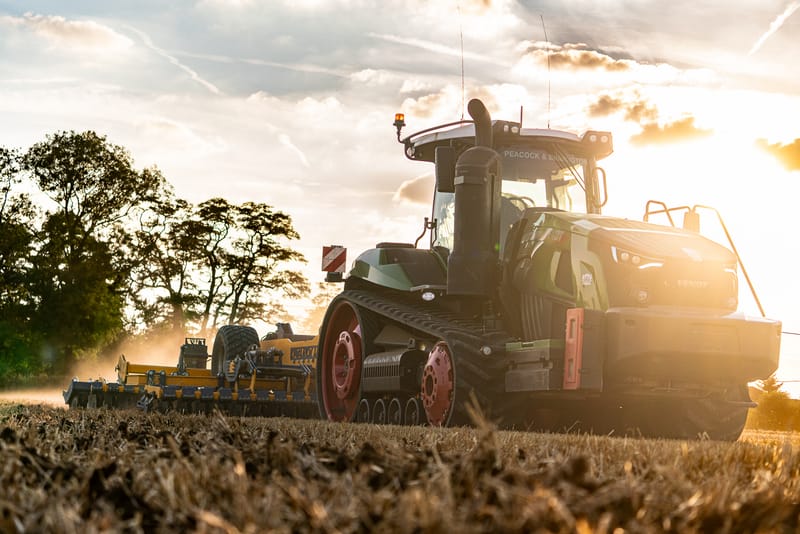

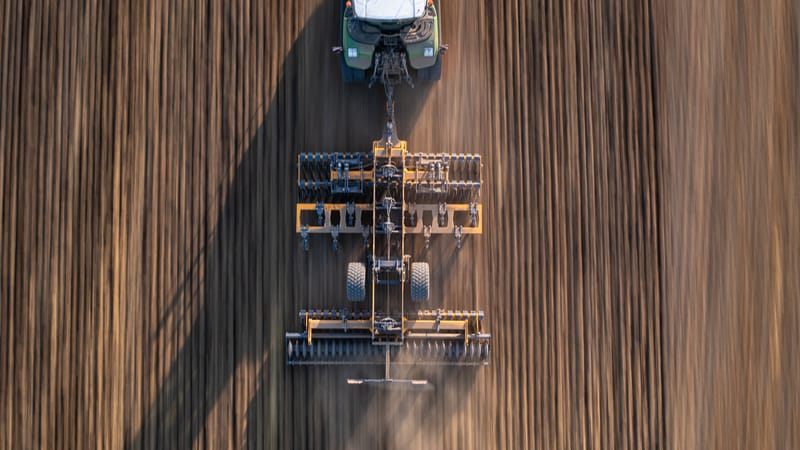

Ease of Operation: Equipped with hydraulic discs that can be controlled from the comfort of your tractor seat. Impressive Working Width: With folding wings, the TWB Alternator boasts a working width of up to 7 meters and is suitable for use with tractors over 600hp. Soil Compatibility: Best suited to heavy clay soil but can be used just as easily in all soil types. Modular Design: The machine can be tailored in simple, modular forms to accommodate your farming style. Adjustable Discs: Discs can be placed at the front of the legs, behind them, or on both sides, allowing for the best results. Versatile Combinations: It is possible to use discs, subsoiler legs, and tines in a variety of combinations to maximize efficiency. This versatility means that the TWB Alternator can meet all of your farming needs—whatever they may be.

Specifications

Subsoiler Leg Options

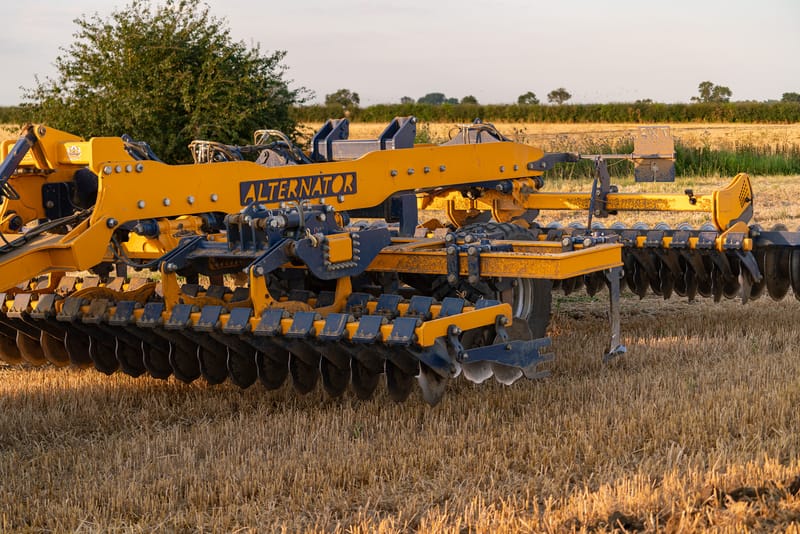

Heavy-Duty Subsoiler Leg: Excels in heavy soils down to 500mm and in conditions requiring deeper loosening. Low Draft Leg: Ideally suited for minimum disturbance work. Material: Both leg options are made from high-grade Hardox steel, with the subsoiler tine at 20mm thickness and the low draft leg at 15mm thickness. Design and Flexibility: Adjustable Leg Spacing: Legs are set at 500mm spacing as standard, but adjustable leg spacing is easy due to the frame design. Rigid Brackets: An option allowing greater accuracy for oilseed rape establishment. The ALTERNATOR also features TWB's Shear Tab System: Unique to TWB Subsoiler legs, this system enhances durability by protecting against overload.

Disc System

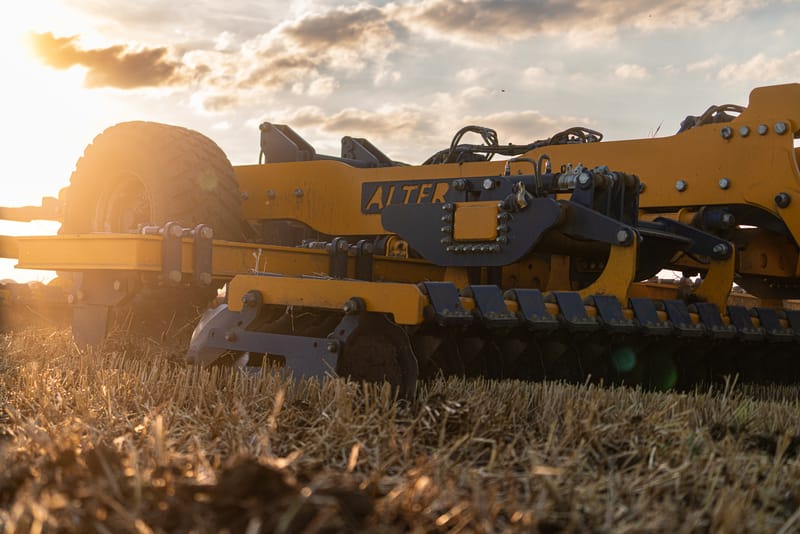

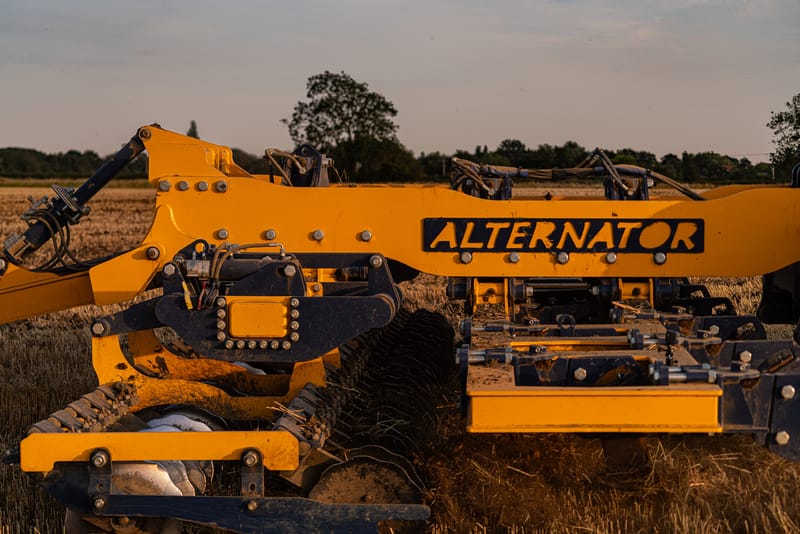

Two Rows of 500mm Diameter Cutaway Discs: Capable of cutting, turning, and leveling the ground in front of the subsoiler legs, providing a tilth suitable for drilling directly into. Hydraulic and Manual Adjustability: Discs are hydraulically adjustable on the move for depth and can also be manually adjusted on a parallel linkage for progressive cultivation. Mounting: Mounted on heavy-duty 100mm box section frames with 50mm rubber suspension rods suitable for primary cultivation, with proven quality hubs and bearings allowing a 600mm disc as an added option.

Mounting Options

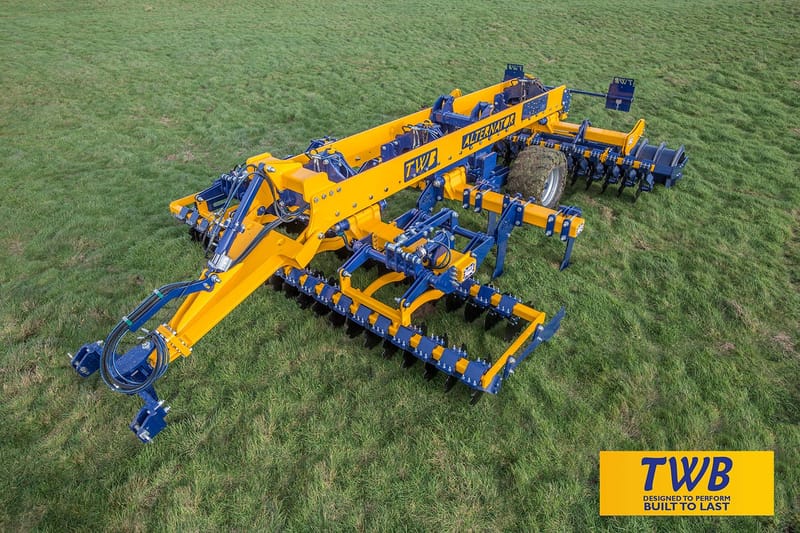

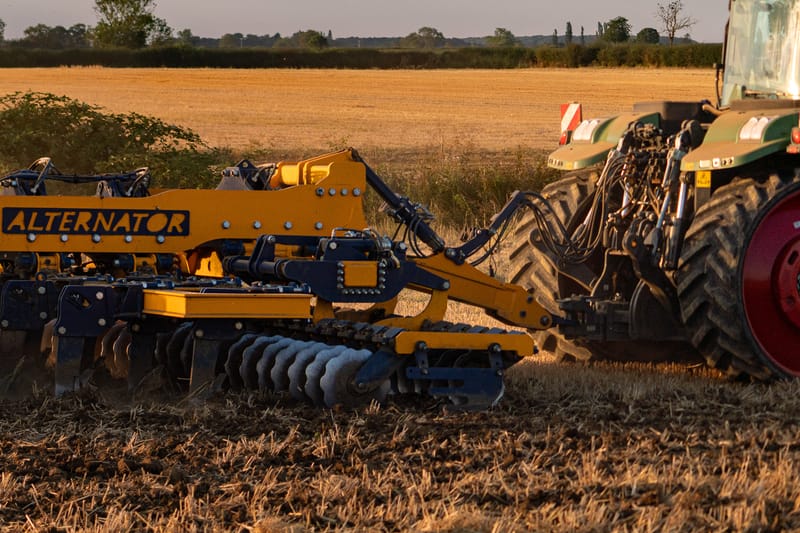

Swiveling Linkage Mounting: Capable of turning to tight angles, exceptionally useful on field headlands, also allowing some draft control and further depth control. Ring Hitch Style Drawbar: Available as an option.

Packer System

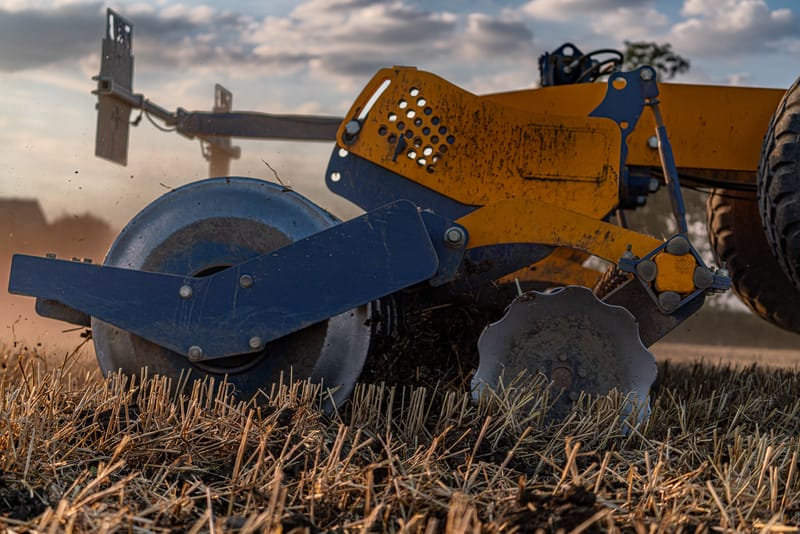

800mm Shouldered Ring Packer: Leaves the soil level and consolidated in a weatherproof finish ready to drill into. Depth Adjustment: The working depth of the Terminator is adjusted on the drawbar and depth gauges of the packer by the simple TWB pin and gauge depth control. Scraper System: The low down scraper position and scraper blade adjustment ensure the shouldered ring packer keeps turning for longer.
